części Eclipse

części Eclipse

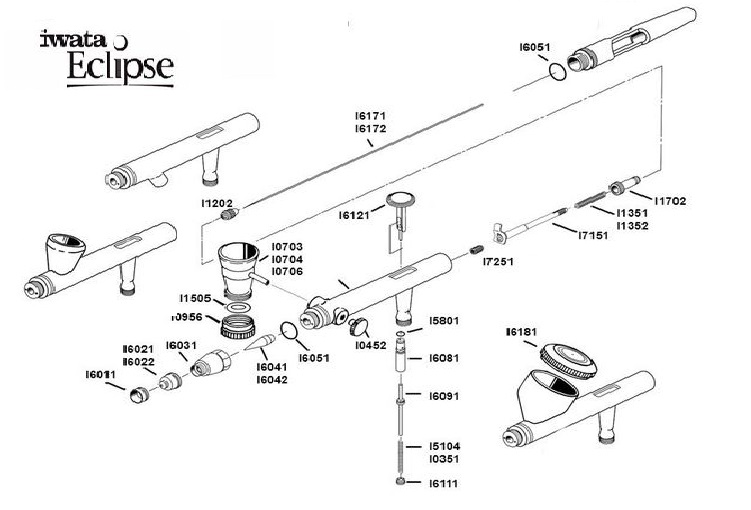

Numer kat. / Opis nr. Numer kat. / Opis nr.
08017580 NEEDLE CAP 1 08016590 MAIN LEVER 17
98533340 NOZZLE CAP HP-BS/HP-CS 2 98530410 NEEDLE CHUCKING GUIDE 19
08012590 NOZZLE CAP HP-BCS 2 08534370 NEEDLE SPRING 21
98533340 NOZZLE CAP HP-SBS 2 98531410 SPRING CASE 22
08015590 HEAD CAP 3 08531360 NEEDLE HP-BS/HP-CS/HP-SBS 23
08013590 FLUID NOZZLE HP-BCS 4 08014590 NEEDLE HP-BCS 23
08530390 NOZZLE GLAND SET HP-BS/HP-CS/HP-SBS 5 08531080 NEEDLE SCREW 24
98533350 NOZZLE HP-BS/HP-CS/HP-SBS 5.1 08534380 CAP HP-BS/HP-CS/HP-SBS 26
08530360 NOZZLE GLAND HP-BS/HP-CS/HP-SBS 5.2 98017591 CAP HP-BCS 26
08012600 HEAD O RING 6 08535380 CUP LID HP-CS 28
98534360 BODY HP-BS 7 13409130 SIDE CUP (SMALL)1,5 ml HP-SBS 29
98530370 BODY HP-CS 7 08534010 BLANKING COVER HP-SBS 30
98536030 BODY HP-BCS 7 VIM4701P PLASTIC BOTTLE 28 ml HP-BCS 31
098531370 BODY HP-SBS 7 13409140 CUP SET  OPTIONAL 7 ml HP-SBS 31
98535400 NEEDLE PACK. SCREW 9 08530060 SPANNER 32

*wyszukując części w sklepie po numerze katalogowym proszę nie wpisywać pierwszego zera.
Numer katalogowy / Opis części numer
08017580 NEEDLE CAP HP-BS/HP-CS/HP-BCS/HP-SBS ref 1
98533340 NOZZLE CAP HP-BS/HP-CS ref 2
08012590 NOZZLE CAP HP-BCS ref 2
98533340 NOZZLE CAP HP-SBS ref 2
08015590 HEAD CAP HP-BS/HP-CS/HP-BCS/HP-SBS ref 3
08013590 FLUID NOZZLE HP-BCS ref 4
08530390 NOZZLE GLAND SET HP-BS/HP-CS/HP-SBS ref 5
98533350 NOZZLE HP-BS/HP-CS/HP-SBS ref 5.1
08530360 NOZZLE GLAND HP-BS/HP-CS/HP-SBS ref 5.2
08012600 HEAD O RING HP-BS/HP-CS/HP-BCS/HP-SBS ref 6
98534360 BODY HP-BS ref 7
98530370 BODY HP-CS ref 7
98536030 BODY HP-BCS ref 7
ù98531370 BODY HP-SBS ref 7
98535400 NEEDLE PACKING SCREW HP-BS/HP-CS/HP-BCS/HP-SBS ref 9
08016590 MAIN LEVER HP-BS/HP-CS/HP-BCS/HP-SBS ref 17
98530410 NEEDLE CHUCKING GUIDE HP-BS/HP-CS/HP-BCS/HP-SBS ref 19
08534370 NEEDLE SPRING HP-BS/HP-CS/ HP-BCS/HP-SBS ref 21
98531410 SPRING CASE HP-BS/HP-CS/HP-BCS/HP-SBS ref 22
08531360 NEEDLE HP-BS/HP-CS/HP-SBS ref 23
08014590 NEEDLE HP-BCS ref 23
08531080 NEEDLE SCREW HP-BS/HP-CS/ HP-BCS/HP-SBS ref 24
08534380 CAP HP-BS/HP-CS/HP-SBS ref 26
98017591 CAP HP-BCS ref 26
08535380 CUP LID HP-CS ref 28
13409130 SIDE CUP (SMALL)1,5 ml HP-SBS ref 29
08534010 BLANKING COVER HP-SBS ref 30
VIM4701P TRANSLUCENT PLASTIC BOTTLE 28 ml HP-BCS ref 31
13409140 CUP SET (MIDDLE) OPTIONAL 7 ml HP-SBS ref 31
08530060 SPANNER HP-BS/HP-CS/HP-BCS/HP-SBS ref 32
VIM6301 ECLIPSE SPANNER ALL ECLIPSE MODELS ref 32
